MD Series
Micromanipulator Platforms
We've designed a series of Microscope Dependent (MD) stands for those who wish to use a Sutter Instrument manipulator in conjunction with an inverted microscope.

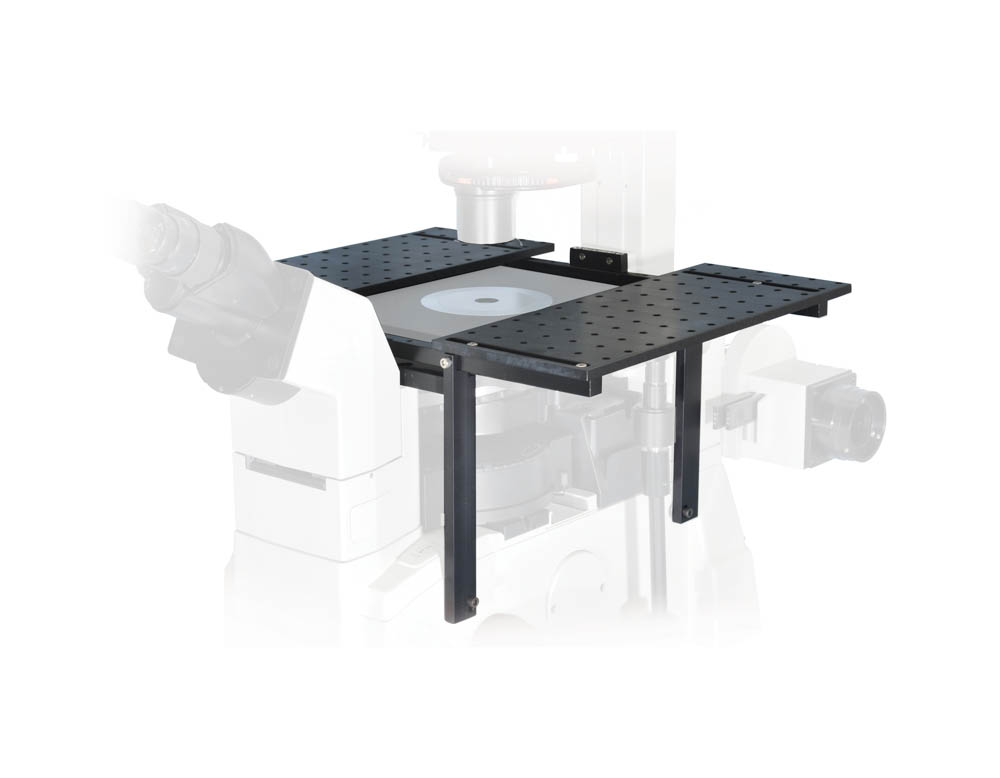

The typical MD stand is a manipulator platform that bolts directly to the frame of an inverted microscope. Stands are available in either single-sided or double-sided versions for the most common inverted microscopes made by Nikon, Olympus, Leica, and Zeiss. These platforms lend themselves to the absolutely drift-free recording configuration required when using the manipulators to position patch-electrodes to record from attached cells in culture.
To mount the MP-285 to an MD stand you also need either the X285210 mounting adapter plate (for orthogonal mounting) or the 285RBI rotating base that allows for non-orthogonal mounting and rotation of the entire manipulator (note: the X285210 mounting plate is included with each MP-285 and MP-225). New mounting options and adapters for new microscopes are being added frequently.
- FEATURES
- Creates a stable matrix of ¼-20 or M6 holes on one or both sides of a mechanical stage
- Open design allows easy access to specimen and microscope
- Mounts directly on microscope preserving valuable optical bench space
- Independent platform separate from specimen
- Allows for flexible mounting of all Sutter motorized manipulators
US Prices > MD Series
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.
MD part numbers have top plates with an imperial hole pattern (¼-20 on 1 in centers) and our MDM part numbers indicate a metric hole pattern (M6 tapped holes on 25 mm centers). The last digit of the MD and MDM part number identifies a single-sided universal platform (-1), single-sided positional (-1L, -1R), or a double-sided platform (-2). If you do not see a metric top plate for your microscope, please phone Sutter as it may be available.
| Catalog Number | Description | Price |
| NIKON MD-50 Series | ||
| Nikon Diaphot 200/300 and Nikon TE 200/300 | ||
| MD-50-1 | Single-sided | $ 615 |
| MD-50-2 | Double-sided | $ 1,227 |
| Nikon TMD | ||
| MD-51-1 | Single-sided | $ 615 |
| MD-51-2 | Double-sided | $ 1,227 |
| Nikon TE-2000 | ||
| MD-52-1 | Single-sided | $ 615 |
| MD-52-2 | Double-sided | $ 1,227 |
| MD-52-1/UP | $ 615 | |
| MD-52-2/UP | $ 1,227 | |
| Nikon TE-2000 (metric tap) | ||
| MDM-52-1 | Single-sided | $ 615 |
| MDM-52-2 | Double-sided | $ 1,227 |
| MDM-52-1/UP | $ 615 | |
| MDM-52-2/UP | $ 1,227 | |
| Nikon Ti | ||
| MD-54-1L | Single-sided left | $ 615 |
| MD-54-1R | Single-sided right | $ 615 |
| MD-54-2 | Double-sided | $ 1,227 |
| MD-54-1/M | $ 615 | |
| MD-54-2/M | $ 1,227 | |
| MD-54-1/UP | $ 615 | |
| MD-54-2/UP | $ 1,227 | |
| MD-54-1/MUP | $ 615 | |
| MD-54-2/MUP | $ 1,227 | |
| Nikon Ti (metric tap) | ||
| MDM-54-1L | Single-sided left | $ 615 |
| MDM-54-1R | Single-sided right | $ 615 |
| MDM-54-2 | Double-sided | $ 1,227 |
| MDM-54-1/M | $ 615 | |
| MDM-54-2/M | $ 1,227 | |
| MDM-54-1/UP | $ 615 | |
| MDM-54-2/UP | $ 1,227 | |
| MDM-54-1/MUP | $ 615 | |
| MDM-54-2/MUP | $ 1,227 | |
| Nikon Ti2 | ||
| MD-55-1L | Single-sided left | $ 615 |
| MD-55-1R | Single-sided right | $ 615 |
| MD-55-2 | Double-sided | $ 1,227 |
| Nikon Ti2 (metric tap) | ||
| MDM-55-1L | Single-sided left | $ 615 |
| MDM-55-1R | Single-sided right | $ 615 |
| MDM-55-2 | Double-sided | $ 1,227 |
| MD-SPACER-15 | 15mm spacer for Nikon Ti2 with motorized stage (set of 4) | $ 72 |
| Nikon TS-2 | ||
| MD-56-1L | Single-sided left | $ 615 |
| MD-56-1R | Single-sided right | $ 615 |
| MD-56-2 | Double-sided | $ 1,227 |
| Nikon TS-2 (metric tap) | ||
| MDM-56-1L | Single-sided left | $ 615 |
| MDM-56-1R | Single-sided right | $ 615 |
| MDM-56-2 | Double-sided | $ 1,227 |
| Nikon TS-2R | ||
| MD-57-1 | Single-sided | $ 615 |
| MD-57-2 | Double-sided | $ 1,227 |
| Nikon TS-2R (metric tap) | ||
| MDM-57-1 | Single-sided | $ 615 |
| MDM-57-2 | Double-sided | $ 1,227 |
| Catalog Number | Description | Price |
| LEICA MD-60 Series | ||
| Leica DMIRB | ||
| MD-60-1L | Single-sided left | $ 615 |
| MD-60-1R | Single-sided right | $ 615 |
| MD-60-2 | Double-sided | $ 1,227 |
| Leica DMIL | ||
| MD-61-1 | Single-sided | $ 615 |
| MD-61-2 | Double-sided | $ 1,227 |
| Leica DMI 4000/5000/6000 | ||
| MD-62-1L | Single-sided left | $ 615 |
| MD-62-1R | Single-sided right | $ 615 |
| MD-62-2 | Double-sided | $ 1,227 |
| Leica DMi 8 | ||
| MD63-1L | Single-sided left | $ 615 |
| MD63-1R | Single-sided right | $ 615 |
| MD63-2 | Double-sided | $ 1,227 |
| MD63-1L/M | $ 615 | |
| MD63-1R/M | $ 615 | |
| MD63-2/M | $ 1,227 | |
| Leica DMi 8 (metric tap) | ||
| MDM63-1L | Single-sided left | $ 615 |
| MDM63-1R | Single-sided right | $ 615 |
| MDM63-2 | Double-sided | $ 1,227 |
| MDM63-1L/M | $ 615 | |
| MDM63-1R/M | $ 615 | |
| MDM63-2/M | $ 1,227 | |
| Catalog Number | Description | Price |
| OLYMPUS MD-80 Series | ||
| Olympus IX 50/70 | ||
| MD-80-1 | Single-sided | $ 615 |
| MD-80-2 | Double-sided | $ 1,227 |
| Olympus IX 50/70 (metric tap) | ||
| MDM-80-1 | Single-sided | $ 615 |
| MDM-80-2 | Double-sided | $ 1,227 |
| Olympus IX 51/71/81 | ||
| MD-81-1 | Single-sided | $ 615 |
| MD-81-2 | Double-sided | $ 1,227 |
| Olympus IX 51/71/81 (metric tap) | ||
| MDM-81-1 | Single-sided | $ 615 |
| MDM-81-2 | Double-sided | $ 1,227 |
| Olympus IX 51/71/81 with zero drift stage | ||
| MD-81-1ZDC | Single-sided | $ 615 |
| MD-81-2ZDC | Double-sided | $ 1,227 |
| Olympus IX 53/73 | ||
| MD-73-1 | Single-sided | $ 615 |
| MD-73-2 | Double-sided | $ 1,227 |
| Olympus IX 53/73 (metric tap) | ||
| MDM-73-1 | Single-sided | $ 615 |
| MDM-73-2 | Double-sided | $ 1,227 |
| Olympus IX 83 | ||
| MD-83-1 | Single-sided | $ 615 |
| MD-83-2 | Double-sided | $ 1,227 |
| Olympus IX 83 (metric tap) | ||
| MDM-83-1 | Single-sided | $ 615 |
| MDM-83-2 | Double-sided | $ 1,227 |
| Catalog Number | Description | Price |
| ZEISS MD-90 Series | ||
| Axiovert 100/135 | ||
| MD-90-1 | Single-sided | $ 615 |
| MD-90-2 | Double-sided | $ 1,227 |
| Axiovert 200 / Axio Observer | ||
| MD-91-1 | Single-sided | $ 615 |
| MD-91-2 | Double-sided | $ 1,227 |
| Axiovert 200 / Axio Observer (metric tap) | ||
| MDM-91-1 | Single-sided | $ 615 |
| MDM-91-2 | Double-sided | $ 1,227 |
| Axiovert 25 | ||
| MD-92-1 | Single-sided | $ 615 |
| MD-92-2 | Double-sided | $ 1,227 |
