Lambda FLED

Fluorescent Light Source

The Lambda FLED was designed as a high-power LED driver for fluorescence microscopy. Based on our proven TLED+ design, the FLED has been optimized for single-channel, high-current LEDs used as excitation light sources.

The basic system consists of an LED mounted on a special black-anodized aluminum heat sink and a controller. The controller is CNC machined from solid aluminum billet, and powered by a rugged modular universal power supply. The FLED provides intensity control and on-off control via a toggle switch or TTL logic. The on-off time is less than 25 µsecs when using TTL control. In addition to digital input control, the Lambda FLED has an analog input to modulate the LED intensity. The Lambda FLED is expected to have stable output that will last more than 50,000 hours.

The Lambda FLED can be ordered with several different wavelength-specific LEDs that range from 365 nm to 940 nm. Please call us if you require a wavelength that is not listed.

Our dual channel Lambda FLED option combines two high power LEDs into a single light path. The FLED-DC allows the use of two channels for fluorescence imaging. Both channels are driven by individual FLED controllers and can be triggered, also individually, by a TTL signal. For greater than two LEDs in a setup, please see our Lambda 421 or Lambda OBC.

Each Lambda FLED system includes an optical mounting adapter for the excitation port of the microscope and detailed installation instructions. Mounting adapters are designed to fit most models of Nikon, Olympus, Zeiss and Leica microscopes. Custom adapters are available at an additional cost.

> 50,000 hour lifetime
< 25 µsecs ON-OFF time
TTL control (with polarity switch)
Very stable output
Compact stand-alone design
Easy installation

TECHNICAL SPECIFICATIONS

Output Range
White light (400 nm - 700 nm)

Noise/Short term stability
0.01%

LED Life
> 50,000 hours

Control Box Dimensions
FLED
4 in x 3.25 in x 4.1 in | 10.2 cm x 8.3 cm x 10.2 cm

Weight
2.2 lbs | 1.0 kg

Electrical
120/240 Volts
50/60 Hertz power line
75 Watts max

Lambda FLED CE Certificate

TECHNICAL INFORMATION

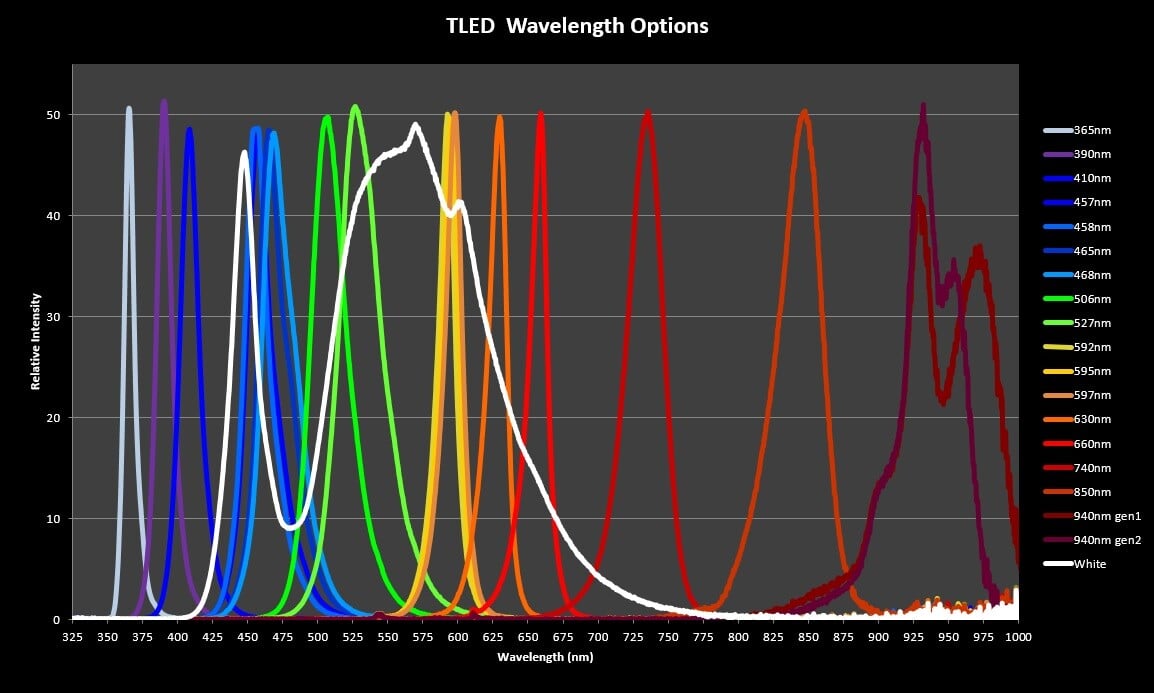

Available Wavelengths

PRODUCT INFORMATION
Download Sales Flyer

Part Number > Lambda FLED
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation.

Part Number	Description
LAMBDA FLED Single Channel LED Light Source
Includes Lambda FLED light source, FLED controller and power supply
^*Please select one wavelength when ordering: (in nm) 340, 365, 385, 410, 440, 460, 480, 506, 530, 561, 590, 630, 660, 740, 850, 940
FLED-N	Lambda FLED for Nikon
FLED-N25¹	Lambda FLED for Nikon TE200/E300, Diaphot 200/300
FLED-N50	Lambda FLED for Nikon AZ100
FLED-Y	Lambda FLED for Olympus
FLED-Z	Lambda FLED for Zeiss
FLED-L	Lambda FLED for Leica	$3,448
FLED-C²	Lambda FLED with C-mount

Part Number	Description
LAMBDA FLED-DC Dual Channel LED Light Source
Includes dual channel Lambda FLED light source, two FLED controllers and power supplies.
^*Please select TWO wavelengths when ordering: (in nm) 340, 365, 385, 410, 440, 460, 480, 506, 530, 561, 590, 630, 660, 740, 850, 940
FLED-DC-N	Dual Channel Lambda FLED for Nikon
FLED-DC-Y	Dual Channel Lambda FLED for Olympus
FLED-DC-Z	Dual Channel Lambda FLED for Zeiss
FLED-DC-L	Dual Channel Lambda FLED for Leica
FLED-DC-C	Dual Channel Lambda FLED with C-mount

ACCESSORIES

Part Number	Description
TRIGGER³	USB trigger box

^* Other wavelengths and wavelength combinations may be available. Contact Sutter for details.
¹ sdReplaces the epi-illuminator
² Suitable for SOM microscope
³ Compatible with Micro-Manager software

Custom mounting adapters are available on all models at an additional cost. Contact Sutter for details.
