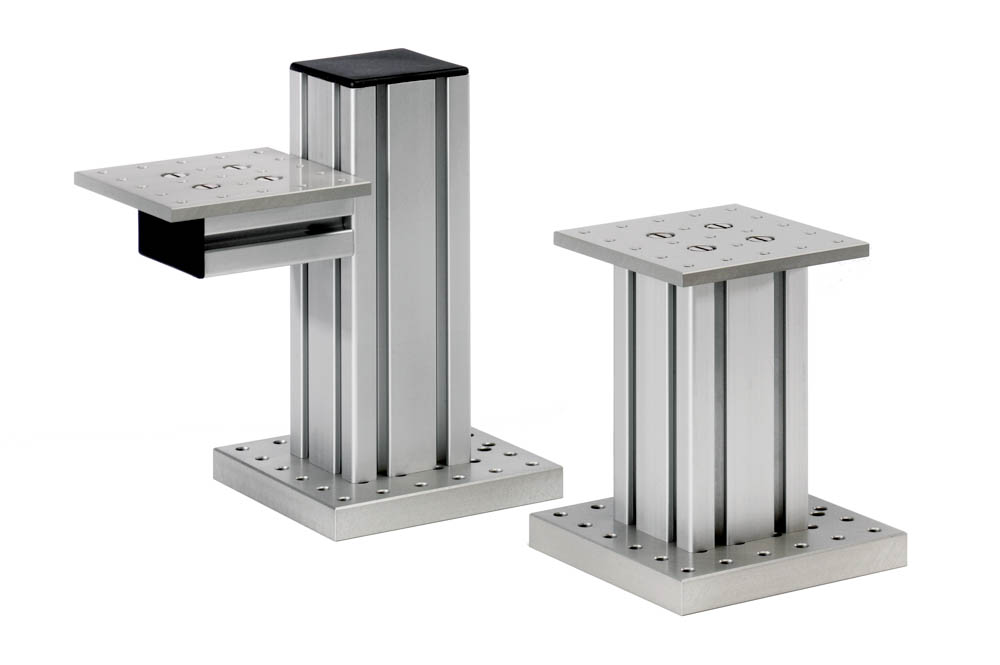

MT-70 & MT-71 Series
Micromanipulator Stands

The MT-70 and MT-71 series of stands are sturdy, stable, and extremely versatile for mounting components for a variety of research applications. They were designed for placing our heavy Huxley-style micromanipulators adjacent to any microscope. We found them to be so useful and adaptable that we also use them for mounting other items such as optical components.

The stands are based on a rigid extruded aluminum tower which is available in 3 inch increments up to 12 inches. The tower is mounted on a sturdy 3/4 in. thick aluminum baseplate and then fitted with a 5/16 in. thick aluminum mounting platform. These systems are configurable as fixed height stands or, in the MT-71 series, have an adjustable height cantilevered side platform for added versatility. The tower can be center or edge mounted to the baseplate for accommodating various spatial layouts. Rows of 1 inch and 25 mm centered clearance holes are provided in the baseplate for attachment to tables. The mounting platforms have tapped 1/4-20 mounting holes on 1 inch centers.

The stands are available in sets or you can order individual components separately to meet your specific requirements. Custom heights can be made to order for an additional fee. To securely fasten our MP-85 Huxley style manipulator to the mounting plates, please order the manipulator adapter plate at the time of purchase. Larger baseplates or mounting plates are available upon special order.

    FEATURES
  • Solid extrusion provides sturdy, stable mounting
  • Individual components provide a variety of mounting options
  • Adjustable height cantilever available
  • Accomodates a variety of special layouts
  • Suitable for upright and inverted microscopes

TECHNICAL SPECIFICATIONS

Dimensions of Baseplate
6 in x 6 in x 3/4 in | 153 mm x 153 mm x 19 mm

Dimensions of Mounting Plate
5 in x 5 in x 5/16 in | 128 mm x 128 mm x 8 mm

Total Stand Height
4 1/16 in to 13 1/16 in | 104 mm to 333 mm
depending on configuration

Weight
3 lb 11 oz to 8 lb 5 oz | 1.7 kg to 3.8 kg
depending on configuration

US PRICES > MT-70 Series
International prices vary by country due to associated importation costs. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.

Catalog Number Description Price
MT-70-3 3" tower, baseplate, mounting platform and fastening hardware $ 312
MT-70-6 6" tower, baseplate, mounting platform and fastening hardware $ 342
MT-70-9 9" tower, baseplate, mounting platform and fastening hardware $ 380
MT-70-12 12" tower, baseplate, mounting platform and fastening hardware $ 408

Custom tower lengths available: $20 per inch, $25 per cut


US PRICES > MT-71 Series
International prices vary by country due to associated importation costs. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.

Catalog Number Description Price
MT-71-3 3" tower, baseplate, cantilever assembly with mounting platform,tower endcap and fastening hardware $ 375
MT-71-6 6" tower, baseplate, cantilever assembly with mounting platform,tower endcap and fastening hardware $ 408
MT-71-9 9" tower, baseplate, cantilever assembly with mounting platform,tower endcap and fastening hardware $ 440
MT-71-12 12" tower, baseplate, cantilever assembly with mounting platform,tower endcap and fastening hardware $ 475

Custom tower lengths available: $20 per inch, $25 per cut


US PRICES > ACCESSORIES
International prices vary by country due to associated importation costs. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.

Catalog Number Description Price
MT-7001 Cantilever mounting assembly $ 164
MAG-MT Magnetic feet (set of 4) $ 69
X700080 Thin baseplate - 5" x 5" x 0.3" thick $ 120
X700095 Narrow baseplate - 3" x 5" x 0.75" thick $ 120
X700100 Square baseplate - 6" x 6" x 0.75" thick $ 120
X700102 Mounting plate - 5" x 5" x 0.3" thick $ 90
X700115 MP-85 adapter plate $ 105
