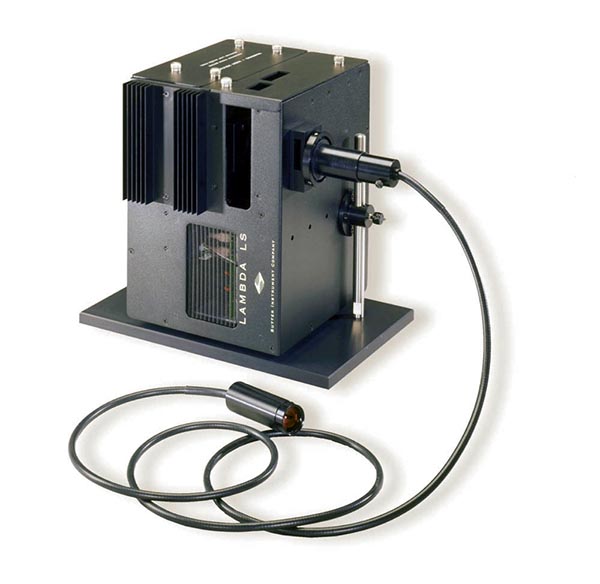

Lambda LS
Stand-Alone Xenon Arc Lamp and Power Supply

The Lambda LS is a stand-alone illuminator consisting of a xenon-arc lamp, lamp housing, cold mirror and power supply in a single enclosure. The Lambda LS is designed to be used with a liquid light guide which transmits remarkably flat, intense, illumination to the optical train of the user’s microscope or other instrumentation. The lamp’s cabinet accommodates a standard Sutter Instrument filter wheel that slides easily in and out of a slot in the light path. If desired, a second filterwheel can be mounted on the outside of the cabinet. When used with appropriate adapters, the light guide output is compatible with most common microscope systems.

Unlike the arc lamps used with most fluorescence microscopes, the 175W xenon bulb is pre-aligned using a parabolic mirror and does not require alignment, focusing or collimation. In the standard configuration, the Lambda LS bulb is capable of producing light output from 330nm to a cutoff of 650 nm determined by the cold mirror. An optional enhanced UV bulb produces output much lower into the UV (cut off near 200 nm). As with any UV generating light source, the optional bulb generates significant quantities of ozone and must be used in an adequately ventilated environment.

The Lambda LS utilizes a compact design, which places power supply, lamp house, arc lamp and cold mirror in a single enclosure. This system eliminates a common failure associated with standard arc lamp designs; when using a remote power supply aging may lead to a decreased ability to light the lamp due to loss of the insulating characteristics of the lengthy high-tension line. As with all our equipment, the power supply has been designed to minimize electrical noise that can be picked up by physiological recording equipment.

The liquid light guide can be coupled to the illumination port of most microscopes using an adapter which can be purchased separately. Please refer to the Microscope Adapters section for further information. Extended output ranges are possible with various cold mirror and light guide combinations. Phone Sutter to discuss your specific application requirements.

    FEATURES
  • Xenon lamps provide light levels which exceed those of standard microscope fluorescence lamps
  • Equipped with a cold mirror to eliminate IR heating of down stream optical components
  • Compact stand-alone lamp housing/power supply enclosure
  • Pre-aligned bulb eliminates common focusing problems
  • Integrated hour meter for convenient monitoring of lamp life
  • Modular construction allows use of optional liquid light guide for flexible direction of light output
  • Easily accommodates Sutter Instrument filter wheels and SmartShutter® within the body of the lamp
  • Can be coupled via a liquid light guide to many standard microscopes - Nikon, Zeiss, Leica and Olympus
    Microscope coupling requires special adapters that are not included; please see the microscope adapter section in this catalog

TECHNICAL SPECIFICATIONS

Output Range
330 nm to 650 nm - ozone free
200 nm to 650 nm - full spectrum (NOTE: full spectrum produces ozone)

Lamp Type
175 or 300 Watt xenon (pre-aligned to produce collimated output)

Radiant Output
2.5 Watts (175W lamp)
4.5 Watts (300W lamp) (broadband, full beam)

Lamp Life
1000 hours (Bulb warranted for 500 hours. Longer life depends on application
Expected life is 1000 hours.)

Power Consumption
175 Watts or 300 Watts

Dimensions
10.5 in x 9.5 in x 10 in | 26.7 cm x 24.1 cm x 25.4 cm

Weight
10.5 lbs | 4.8 kg

Electrical
120/240 Volts
50/60 Hertz power line

RoHS Compliant

CE Certificate

US Prices > Lambda LS
International prices vary by country due to associated importation costs. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.

All Lambda LS systems include: xenon lamp, cold mirror, power supply and lamp housing, support base with mounting rods, drop-in filter holder and manual

Catalog Number Description Price
LS/OF30 Lambda LS with 300 Watt ozone free lamp $ 5,500
LS/FS30* Lambda LS with 300 Watt full spectrum lamp $ 5,500
LS/OF17 Lambda LS with 175 Watt ozone free lamp $ 5,250
LS/FS17* Lambda LS with 175 Watt full spectrum lamp $ 5,250
LS/OF30R1 Lambda LS with 300 Watt ozone free lamp and cold mirror that reflects to 780 nm $ 5,550
LS/OF30IR2 Lambda LS with 300 Watt ozone free lamp and cold mirror that reflects to 1100 nm $ 5,550
LS/FS30UV3 Lambda LS with 300 Watt full spectrum lamp and cold mirror that reflects to 275 nm $ 5,550

* Full spectrum bulbs produce ozone. Please be certain that you have proper ventilation. Contact Sutter for details.

US Prices > FILTER WHEELS AND SHUTTER
Please consult Lambda 10-3, 10-B, and SmartShutter pages for controller options or phone Sutter for assistance.

Catalog Number Description Price
LB10-NWIQ/LS 10 position 25 mm filter wheel with SmartShutter® for mounting in Lambda LS $ 3,900
LB10-NW * 10 position 25 mm filter wheel (can be mounted inside Lambda LS or outside if used as a second wheel) $ 3,080
IQ-25/LS 25 mm SmartShutter® for mounting in Lambda LS $ 1,260

* Will need to purchase additional controller if using as a second wheel

US Prices > ACCESSORIES

Catalog Number Description Price
LLG Liquid light guide (2 meters, 3 mm dia.), C-mount, lens and lens tube $ 1,470
LLG/3804 Liquid light guide (2 meters, 3 mm dia.), C-mount, lens and lens tube $ 1,470
LLG/20005 Liquid light guide (2 meters, 3 mm dia.), C-mount, lens and lens tube $ 1,470
LLG/2506 Liquid light guide (2 meters, 3 mm dia.), C-mount, lens and lens tube $ 1,470
LLGPLUS7 Liquid light guide (2 meters, 3 mm dia.), Heatsink, C-mount, lens and lens tube $ 1,678
LLGPLUS/3807 Liquid light guide (2 meters, 3 mm dia.), Heatsink, C-mount, lens and lens tube $ 1,678
LLGPLUS/20007 Liquid light guide (2 meters, 3 mm dia.), Heatsink, C-mount, lens and lens tube $ 1,678
DROP-IN Drop-in filter holder (25 mm diameter) $ 80
O7776558 Replacement 3 mm light guide (300 series) $ 645
O7776519 Replacement 3 mm light guide (380 series) $ 645

1 Order with LLG/380
2 Order with LLG/380 or LLG/2000
3 Order with LLG/250
4 Supports transmission into near IR
5 Supports transmission into IR. No output below 420nm
6 Supports transmission into UV
7 Extends the lifetime of the LLG when the Lambda LS is used without a SmartShutter
8 Maximum UV transmission
9 Allows light input into near IR



US Prices > BULBS*

Catalog Number Description Price
O661176 Ozone free 175 Watt xenon bulb (attenuated output below 340 nm) $704
O661175** Full spectrum 175 Watt xenon bulb $704
O661301 Ozone free 300 Watt xenon bulb (attenuated output below 340 nm) $704
O661300** Full spectrum 300 Watt xenon bulb $704
O661115 Housing and heat sink for bulb (bulb will be installed when ordered at the same time as housing) $300

*Please note that the above bulbs do not include the outer blue housing. If you need or want an extra housing, please contact Sutter by phone, fax or email.
** Full spectrum bulbs produce ozone. Please be certain that you have proper ventilation. Contact Sutter for details.

Mounting adapters for Nikon, Zeiss, Leica and Olympus microscopes are available. Please see the Microscope Adapters page or contact Sutter Instrument for pricing and further information.


RELATED PRODUCTS

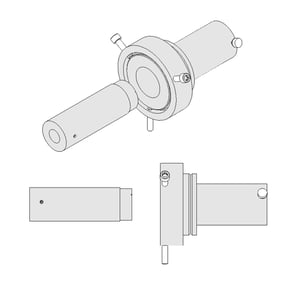

Microscope Adapters
SmartShutter®
Lambda 10-3
Lambda 10-B

USER MANUAL
Lambda LS Operation Manual

PRODUCT INFORMATION
Download Sales Flyer

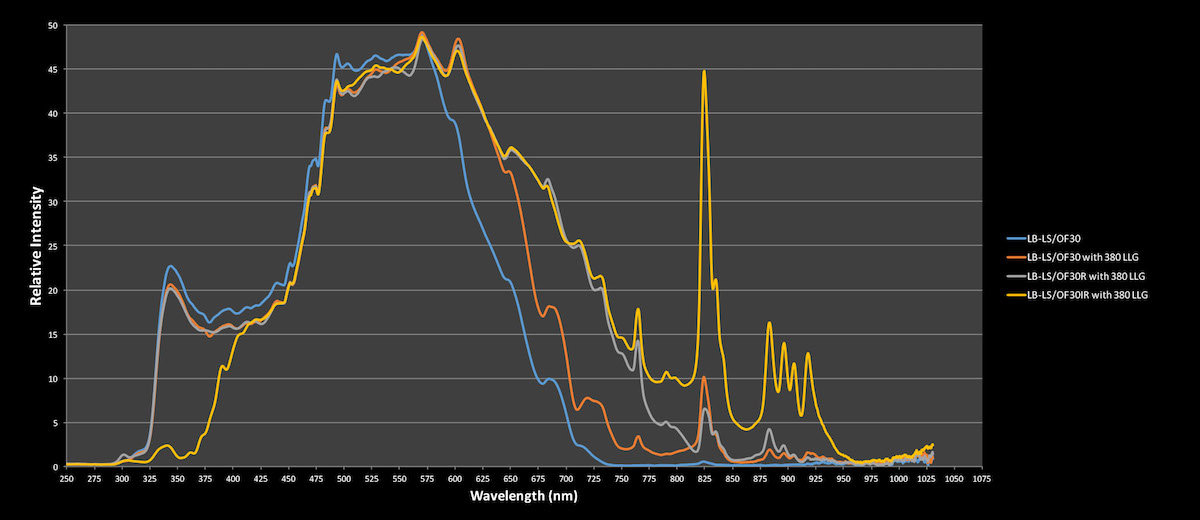

Spectral Output
