PS-2 & PS-2/LV
PMT POWER SUPPLIES

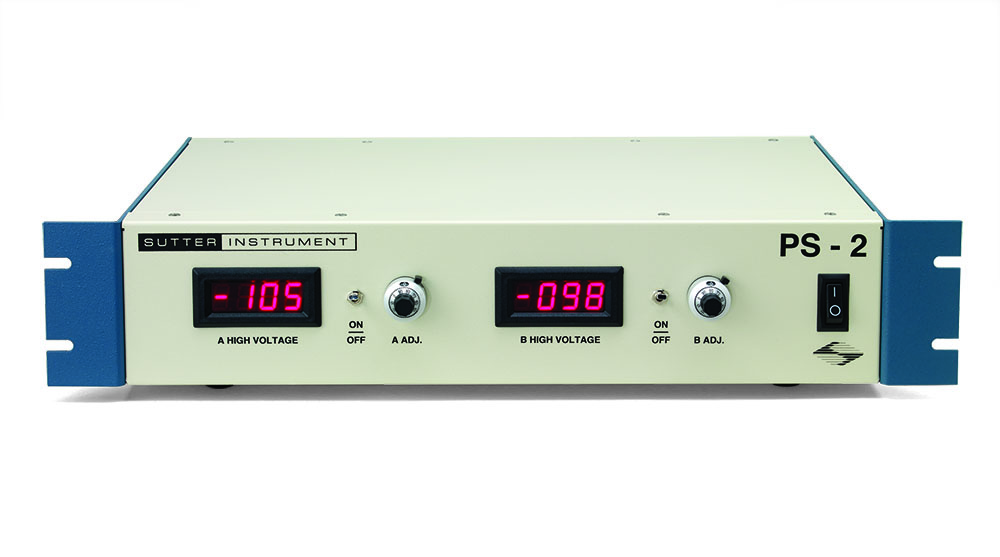

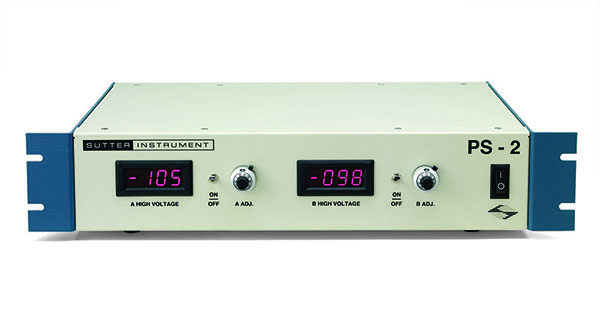

The PS-2 and PS-2/LV are Sutter PMT power supplies sold with the Sutter MOM®. They are also available to those who need dual power supplies for either their own scanning microscope or other projects that need PMT power supplies. The PS-2 is a dual high voltage supply specifically designed to be used with the Hamamatsu R6357 multi alkali PMT but applicable to other similar PMTs. The PS-2/LV was originally designed to be used with the Hamamatsu H10770PA-40 PMT Module, but is applicable to many other similar PMT modules that have the high voltage supply built into the device and only require a low voltage supply and a control voltage to set gain.

The PS-2 and PS-2/LV have additional outputs for running preamplifiers and other associated circuitry. Both are dual supplies with discrete on/off switches, gain controls and voltage displays for the two PMTs attached. These two models are manually controlled, which is convenient for those designing their own scopes; there is no need to worry about PC control of various parameters. Just plug in the PMT and power up!

To keep generated noise at a minimum, linear power supplies are used to generate all low voltages and to power the high voltage supplies.

APPLICABLE PMTs

PS-2

Hamamatsu R6357, R3896, R3811

PS-2/LV

Hamamatsu H10770PA-40, H10770PB-40, H10770PA-50 as well as gated modules like H11706-40 and H11526-110

Please call Sutter for applicability of the PS-2 and PS-2/LV to other PMTs and PMT modules

    FEATURES
  • Dual power supplies, discrete gain, on/off controls and high voltage displays for each PMT connected
  • Rear panel has +/-12VDC (two outlets) and +/-5VDC (two outlets)
  • Mating connectors supplied for high and low voltage outputs
  • Low noise linear power for all low voltages and for driving high voltage supplies

TECHNICAL SPECIFICATIONS

Front panel Controls/Indicators
  • Main power switch for entire unit
  • Discrete controls/indicator for each PMT/channel including:
    • On/Off Switch
    • 10 turn potentiometer to set high voltage/gain
    • LED display showing high voltage 0-1000V

Voltage and Current of rear panel outputs
PS-2 PMT High Voltage output, 0 to -1250 VDC, current 0.6 mA

PS-2/LV PMT Module output, constant +15 VDC as well as control Vref supplied by module

Preamp/Auxiliary power outputs: +/-12 VDC, 200 mA per side. +/-5VDC, 200 mA per side

Dimensions (PS-2 or PS-2/LV)
16 in x 11 in x 3.5 in | 41 cm x 28 cm x 9cm

Weight (PS-2 or PS-2/LV)
6.5 lbs | 3 kg

Electrical
115/230 Volts
50/60 Hertz power line

RoHS compliant

US Prices > PS-2 and PS-2/LV
International prices vary by country due to associated importation costs. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.

Catalog Number Description Price
PS-2 Includes power cord and mating connectors for all outputs $ 3,530
PS-2/LV Includes power cord and mating connectors for all outputs $ 3,530
