XenoWorks®

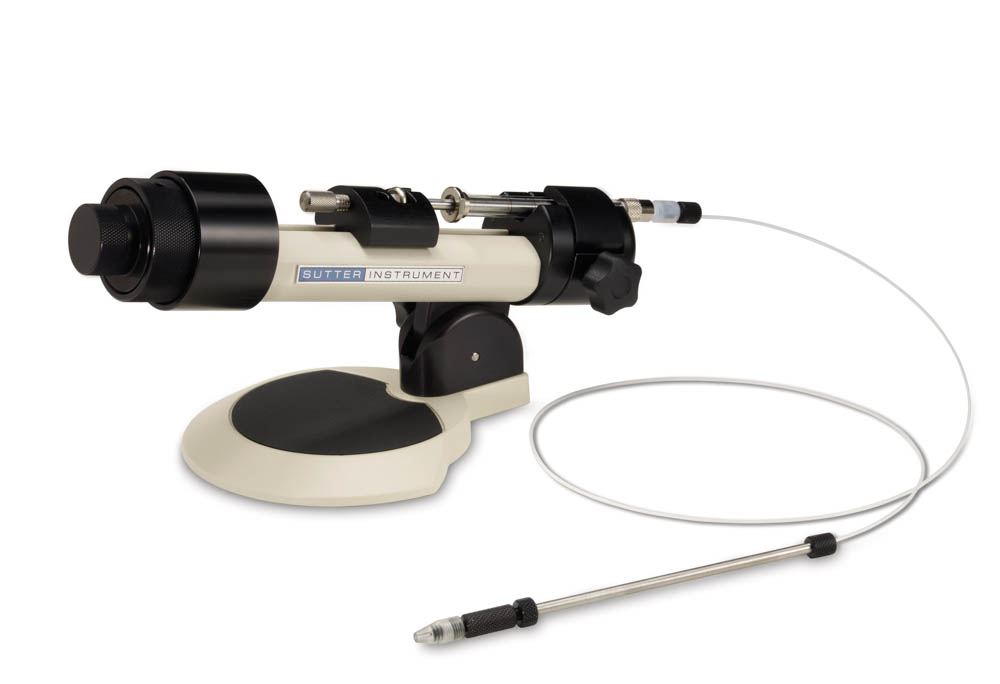

Analog Microinjector

XenoWorks® Analog Microinjector has been designed with ease of use in mind. It is suitable for air, water, and oil depending on the application and the level of responsiveness required. It has both fine and course displacement for fast filling and precise control and can be outfitted with a syringe size of your choice. The design of the Analog Microinjector allows the tubing to be easily separated from the syringe, providing convenient access for cleaning or replacing. Spare tubing and fittings are provided with each injector and the Luer-lock and ferrule connectors assure quick and simple assembly. The tubing length can be altered according to the researcher's needs and ancillary devices, such as three-way valves, may be fitted so that a single injector can control two micropipettes (for applications such as blastomer biopsy).

The XenoWorks Analog Microinjector is the perfect tool for various applications including: intracytoplasmic sperm injection (ICSI), nuclear transfer (NT), embryonic stem (ES) cell transfer, holding, aspiration, and low pressure microinjection.

Syringe Part Number Syringe Volume Volume Per Revolution
Course Dial
Volume Per Revolution
Fine Dial
V001180 10 µl 162 nl 16.2 nl
V001181 25 µl 325 nl 32.5 nl
V001182 50 µl 650 nl 65.0 nl
V001183 100 µl 1.3 µl 130 nl
V001184 250 µl 2.6 µl 0.26 µl
V001185 500 µl 5.2 µl 0.52 µl
V001186 1000 µl 10.4 µl 1.04 µl

BRI XenoWorks Analog Injector Volume Table

    FEATURES
  • Highly stable, drift-free
  • Coaxial coarse and fine displacement (10:1 ratio) for fast filling and precision control
  • Use with air, water, and oil
  • Interchangeable syringes allow sensitivity to be modified
  • Adjustable tilt control

TECHNICAL SPECIFICATIONS

ANALOG MICROINJECTOR
Coarse:Fine displacement ratio
10:1

Displacement / Turn
500l syringe
5.2 µl coarse | 0.5 µl fine

1000µl syringe
10.4 µl coarse | 1.04 µl fine

Tubing
1.5 m ETFE

Micropipette Holder
Diameter:
4 mm
Accepts:
1 mm O.D. capillary glass (other sizes can be accommodated upon request)

CE Certificate


US Prices > XenoWorks Analog Microinjector
International prices vary by country due to associated importation costs. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.

Catalog Number Description Price
BRI1 XenoWorks Analog Microinjector
Includes: microinjector drive, 1 micropipette holder with tubing and fittings, spare tubing, 500 microliter syringe
$ 2,225

US Prices > Xenoworks Accessories

Catalog Number Description Price
BR-MH2 XenoWorks Micropipette Holder $ 180
BR-MH1.0 Micropipette replacement tip (1.0 mm OD glass) $ 47
BR-MH1.2 Micropipette replacement tip (1.2 mm OD glass) $ 47
BR-MH1.5 Micropipette replacement tip (1.5 mm OD glass) $ 47
BR-AT XenoWorks Analog Tubing Kit $ 57
BR-OIL XenoWorks oil for injector (100ml) $ 42
V001180 10 µl gas-tight syringe $ 118
V001181 25 µl gas-tight syringe $ 118
V001182 50 µl gas-tight syringe $ 118
V001183 100 µl gas-tight syringe $ 118
V001184 250 µl gas-tight syringe $ 118
V001185 500 µl gas-tight syringe $ 118
V001186 1000 µl gas-tight syringe $ 118
V001104 1⁄16 in clear ferrule for tubing $ 8
V300450 1.0-1.2 mm O-ring (package of 6) $ 27
V300455 1.5 mm O-ring (package of 6) $ 27
1 Comes standard with 500 microliter syringe. If another size is needed, please specify when ordering.
Consult table to determine size best suited to your application.
2 Please specify tip size when ordering
Syringe Part Number Syringe Volume Volume Per Revolution
Course Dial
Volume Per Revolution
Fine Dial
V001180 10 µl 162 nl 16.2 nl
V001181 25 µl 325 nl 32.5 nl
V001182 50 µl 650 nl 65.0 nl
V001183 100 µl 1.3 µl 130 nl
V001184 250 µl 2.6 µl 0.26 µl
V001185 500 µl 5.2 µl 0.52 µl
V001186 1000 µl 10.4 µl 1.04 µl

BRI XenoWorks Analog Injector Volume Table
