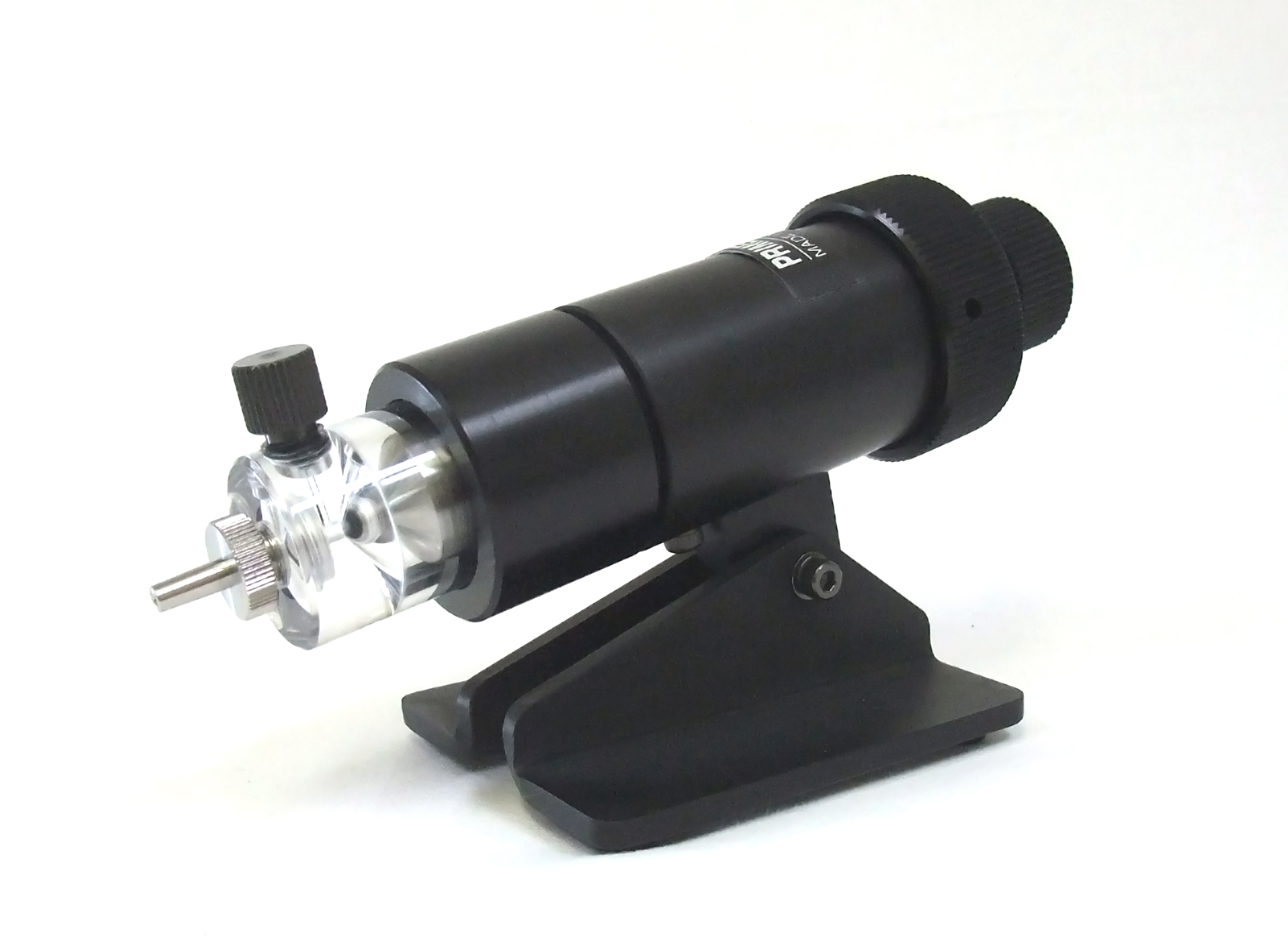

PrimeTech PNJ-T2
Pneumatic Microinjector

The PNJ-T2 pneumatic microinjector from PrimeTech is optimized for use with the PMM piezo impact drives. The PNJ-T2 has a smooth motion and positive feel. The pneumatic system requires little maintanence compared to hydraulic units.

Suitable for a wide range of applications

    FEATURES
  • PNJ-T2 is optimized for use with PMM systems
  • Highly responsive pneumatic control
  • Low-maintenance

TECHNICAL SPECIFICATIONS

Syringe Volume: 5.0 ml
Screw Pitch: 2.0 mm
Diaphram Travel: 16 mm

Dimensions
2.9 in (W) x 6.55 in (D) x 3.5 in (H) | 73 mm (W) x 166.6 mm (D) x 90 mm (H)

Weight
2.05 lbs | 0.93 kg

US Prices > PrimeTech PNJ-T2
*For availability outside North & South America, please contact Sutter Instrument. Prices subject to change without notice.

Catalog Number Description Price
PNJ-T2 Pneumatic Microinjector $ 1,835

Available from Sutter in the Western Hemisphere. Please contact Sutter for other international destinations.
