Prime Tech PMM4G
Piezo Impact Drive

*** Due to component shortages, the PMM4G Piezo Impact Drive is undergoing a redesign. The successor model, PMM6, is expected to be available later in the year. We appreciate your patience and apologize for any inconvenience due to the delay. ***

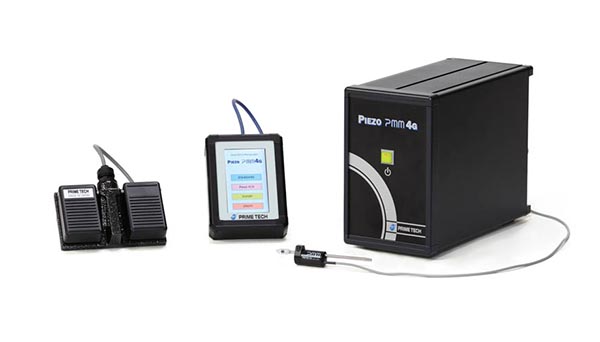

Delicate perforation of the membranes and easy operation are essential for micromanipulation. With Prime Tech's knowledge and well established experience in microinjection, and their long-standing expertise in Piezo technology demonstrated in the very popular PMM-150FU, Prime Tech has created the new Piezo PMM4G. The improvements introduced in the Piezo PMM4G include; a smaller and more effective drive unit with improved transmission efficiency of force to pipette, 3 programmable modes: Standard, Piezo-ICSI and Expert to optimize manipulation for specific protocols, and an enhanced Piezo design that provides a more gentle and effective impact. The advanced user interface with a touch screen display provides ease of input and displays the current injection settings in a compact design that fits easily around the microscope. In addition, the new controller gives the user the ability to more precisely adjust the driving force.

Prime Tech is very pleased to introduce the new Piezo PMM4G where the new designs, features and functions allow the user to attain a level of micromanipulation that is "Gentle for both Oocyte and Operator." The PMM4G is user friendly to both the beginner and the expert!

Drive unit [MB-D]
The new MB-D drive unit easily mounts to the manipulator and has greater durability and performance. PMM4G enables the injection to be performed more gently through improvements to the drive unit.

Interface Module [TS-1]
The PMM4G touch screen interface displays the various "mode" choices and settings. The Interface Module is compact so it can easily be situated next to the user. Settings can be selected or an on/off switch used to control the entire unit.

PMAS-CT4G
The MPAS-CT4G controller includes a power saving function and has been reduced in size compared to the previous model PMAS-CT150. The new controller remians compatible with the PMM-150HJ/FU Operating Box [OP-15].

    FEATURES
  • Smooth insertion of microcapillary into cell membrane
  • Precise movement of micromanipulator within range of travel
  • Inertial force from piezo-electric control minimizes damage of biomembranes
  • Touch screen display
  • Smaller piezo drive unit is adjustable on rod
  • High resolution and precise positioning (minimum controllable dimensions)
  • 3 Modes: Standard, Piezo ICSI, and Expert
  • 8 Memory program positions
  • Compact design

(PRELIMINARY) TECHNICAL SPECIFICATIONS

Piezo Impact Drive Unit (MB-D)
Moving range: ~ 5 mm
Traveling resolution: ~ 0.1 Եm
Traveling speed: 0.04 mm/s max

Operation Box
Touch screen display
3 modes of operation: Standard, ICSI, Expert
Expert mode has 8 program positions
1/2 + 2/3 power options

Foot Switch
Mode A/B selection
Activation of Piezo

Dimensions
Controller
9.5 in x 13 in x 5.5 in | 240 mm x 340 mm x 140 mm

Operation Box
4 in x 6.3 in x 2.4 in | 100 mm x 160 mm x 60 mm

Foot Switch
5.5 in x 5.5 in x 1.5 in | 145 mm x 140 mm x 38mm

Weight
Controller
11.02 lb | 5 kg

Piezo Drive Unit
0.28 lbs | 125 g

Operation Box
1.17 lbs | 530 g

Foot Switch
1.81 lbs | 820 g

Electrical
AC supply of 100-240Volts
50/60 Hz, 60 mA

Temperature
Operates at 5-40° C
Avoid high humidity

The PMM4G is designed for multiple micromanipulation applications including:
ICSI
Enucleation
Nuclear Transfer
ES Cell Injection
Assisted Hatching
(Approved for animal use only)

CE Certificate

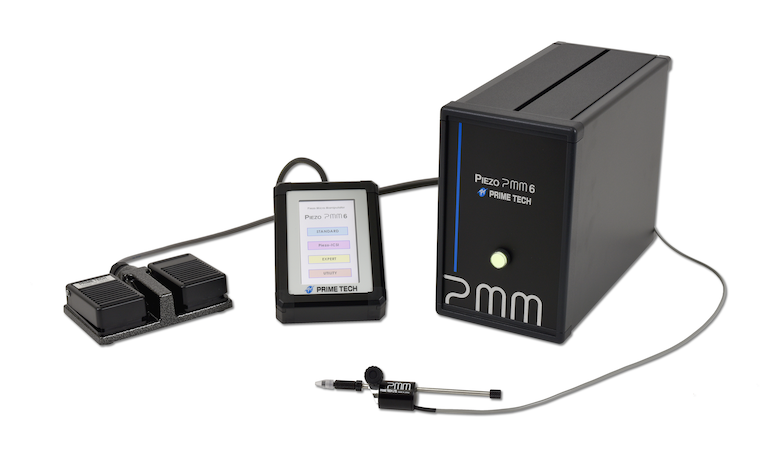

US Prices > PRIMETECH PMM6
For availability outside North & South America, please contact Sutter Instrument. Prices subject to change without notice.

Catalog Number Description Price
PMM6 Controller, operation box, piezo impact drive unit, and foot switch $ 14,462

Available from Sutter in the Western Hemisphere. Please contact Sutter for other international destinations.
