Lambda HPX
Liquid Cooled LED Light Source

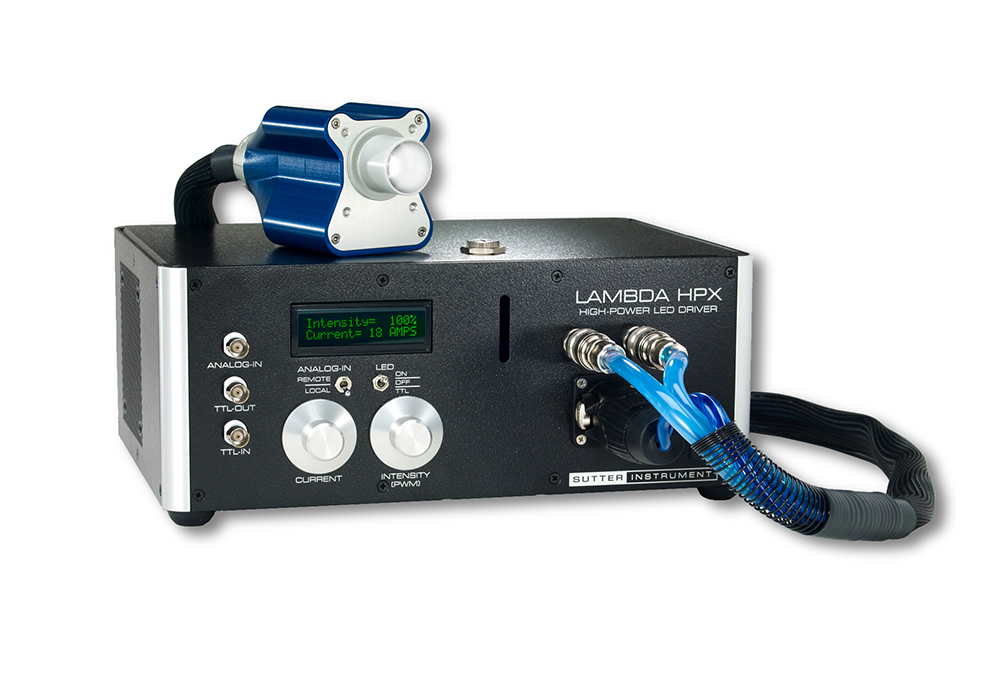

The Lambda HPX represents the latest generation of liquid-cooled high-output LED light sources. Designed around a single 90W 4.25 mm LED die, the Lambda HPX provides light output comparable to a 200W xenon arc lamp. A quiet, vibration-free liquid cooling head (pre-filled at the factory) allows us to maintain the low junction temperatures required to reach the manufacturer’s projected minimum bulb life of 60,000 hours. (The HPX is expected to retain 70% of it's light output after 60,000 hours.) The lightweight precision-machined LED head is designed to mount directly on the epi port of a microscope using an included microscope adapter (specify at time of order). This affords the maximum amount of light coupled directly to the scope, without the losses associated with a liquid light guide.

Because LEDs exhibit color shift with current change, the Lambda HPX was designed to dim the LED using either PWM or current control. PWM will be preferable for most applications, and allows the LED to run cooler. PWM switching is at 28 kHz, high enough for use with most high speed cameras. For those with applications intolerant of pulsed output, dimming via current control is also available. PWM and current information are conveniently displayed on the front panel display, and are manually selectable via control knobs. Integral shuttering time is 10 microseconds to turn on and off.

PWM can also be controlled externally via analog input. TTL input and output allows for triggering from either software or directly from another device such as a camera or digital IO board. The LED cable, and cooling lines are easily removable from the chassis with no-drip quick connectors. This allows for easy set up and routing of cables through your setup. Active temperature monitoring insures that the LED life will be maximized.

Light output is in the visible spectrum from 430 nm - 700 nm. Both a cool white and “tungsten” white LED is available (see spectra). Special order units are available with 630 nm, 530 nm, 460 nm, 405 nm, and 385 nm wavelength specific LEDs. The Lambda HPX can also be combined with our FLED to create a two-channel system with any combination of wavelengths.

    FEATURES
  • Pre-filled liquid cooling
  • Dimming via PWM or Current control
  • Lifetime > 50,000 hours
  • Front mounted connectors for ease of access
  • TTL and Analog controls
  • Integral Shuttering
  • White light and UV combination available
    COMMON APPLICATIONS
  • Fluorescent microscopy
  • Optogenetics

TECHNICAL SPECIFICATIONS

Output Range
White light (430 nm - 700 nm)

Shuttering
Turn on time: 10 µs
Turn off time: 10 µs

Noise/Short term stability
0.02%

LED Life
> 50,000 hours

PWM Frequency
28 kHz

Input / Output
TTL & Analog

Standard White LEDs
Cool white (see spectra)

Optional LEDs
630 nm, 530 nm, 460 nm, and 405 nm

Dimming
PWM or Current control

Dimensions
Control Box
12.25 in W x 9 in D x 5.25 in H | 311 mm W x 229 mm D x 133 mm H

Head (attaches to scope)
2.5 in W x 3 in H x 5 in L | 64 mm W x 76 mm H x 127 mm L

Length of cabling between Head and Control Box
4 ft | 1.2 m

Weight
12.5 lbs | 5.7 Kg

Electrical
120/240 Volts
50/60 Hertz power line
150 Watts max


US Prices > Lambda HPX
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.

LAMBDA-HPX- Includes the Lambda HPX LED light source, cables and controller

Catalog Number Description Price
HPX-Y1 Lambda HPX LED light source for Olympus $6,580
HPX-N1 Lambda HPX LED light source for Nikon $6,580
HPX-Z1 Lambda HPX LED light source for Zeiss $6,580
HPX-L1 Lambda HPX LED light source for Leica $6,580

1 Select one wavelength when ordering

WC-HPX LED, Cool White
460-HPX LED, 460 nm
530-HPX LED, 530 nm
630-HPX LED, 630 nm

LAMBDA-HPXUV- Includes the Lambda HPXUV Ultraviolet LED light source, cables and controller

Catalog Number Description Price
HPXUV-Y1 Lambda HPX UV LED light source for Olympus $6,785
HPXUV-N1 Lambda HPX UV LED light source for Nikon $6,785
HPXUV-Z1 Lambda HPX UV LED light source for Zeiss $6,785
HPXUV-L1 Lambda HPX UV LED light source for Leica $6,785
HPXUV-C1 Lambda HPX UV LED light source with C-mount $6,785

1 Select one wavelength when ordering

385-HPX UV LED, 385nm
405-HPX UV LED, 405nm

LAMBDA-HPX-DC* - Includes the Lambda HPX LED light source with cool white LED, Lambda FLED with Ultraviolet LED, and cables.

Catalog Number Description Price
HPX-DC-Y Lambda HPX and FLED for Olympus $9,550
HPX-DC-N Lambda HPX and FLED for Nikon $9,550
HPX-DC-Z Lambda HPX and FLED for Zeiss $9,550
HPX-DC-L Lambda HPX and FLED for Leica $9,550

* Suitable for additional DAPI channel


ACCESSORIES

Catalog Number Description Price
TRIGGER2 USB trigger box $ 520

2 Compatible with Micro-Manager software
